LM-EW60-3DIR

LINK-MI LM-EW60-3DIR 60m Single Cat5e6 HDMI Wall Plate Extender

Introduction:

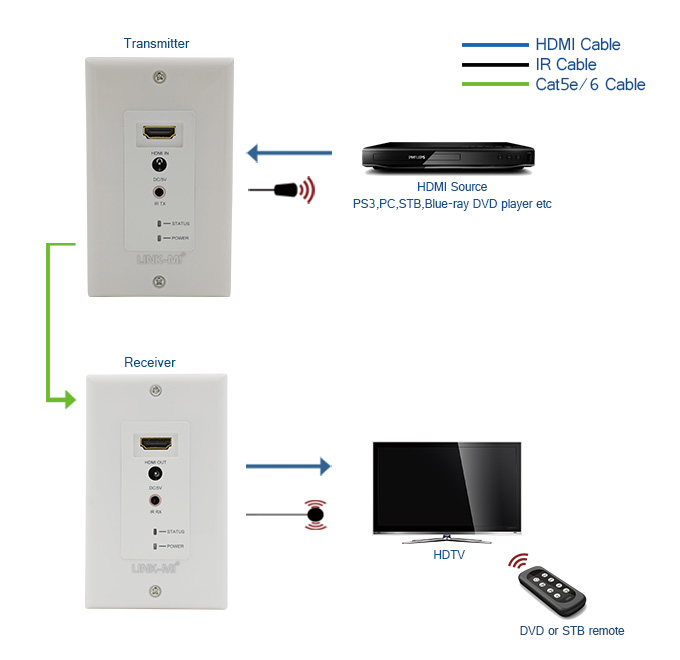

1. Each set includes one transmitter and one receiver
2. Following North American Wall Plate Standard
3. Modular design
4. Using single UTP cable ( cat5e/6 ) to substitute HDMI cable to achieve long distance transmission, the UTP cable follows the standard of IEEE-568B
5. Transmission distance reaches up to 60 meters under the video format of 1080p
6. Auto-adjustment of feedback, equalization and amplify
7. Signaling rates up to 2.25Gbits in support of 1080p display
8. With Infrared Control signal passing through function
9. Supports 3D Video format

Description

Specification

Brand	LINK-MI
Model No.	LM-EW60-3DIR
Material	PE Plastic
Color	White
Interface	HDMI
Application	Extend HDMI Signal up to 60m over single UTP cable
Operating Temperature Range	-5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit )
Operating Humidity Range	5 to 90%RH ( No Condensation )
Input Video Signal	0.5-1.0 Volts P-P
Input DDC Signal	5 Volts P-P ( TTL )
Video Format	DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p 3D Video
Video Output	HDMI
Audio Format	DTS-HD Master Audio, Dolby True-HD etc.
Transmission Distance	1080p 8-bit 60m(Max.) Over Cat5e/6/24AWG/Solid ( Recommend to use 23AWG Cat6 Cable )
Power Consumption	3 Watts ( Max. )
Dimension ( LWH )	1157035mm
Net Weight	260g( Pair )

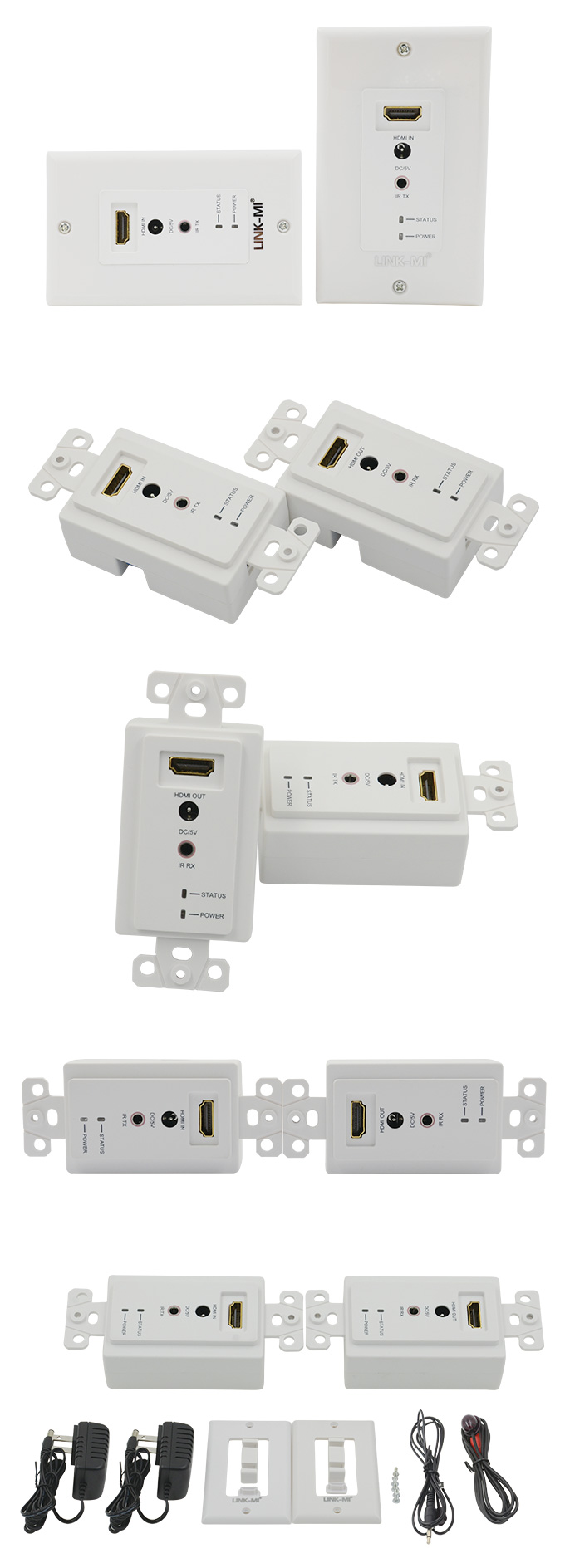

Packing Contents

1. Main Unit. HDMI Wall Plate Extender Transmitter & Receiver

2. 2pcs DC 5V 1A Power Supply

3. IR TX Unit ( IR Emitter Cable )

4. IR RX Unit ( IR Receiver Cable )

5. Operating Instructions
